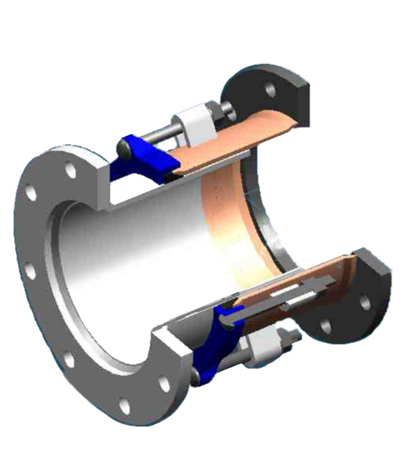

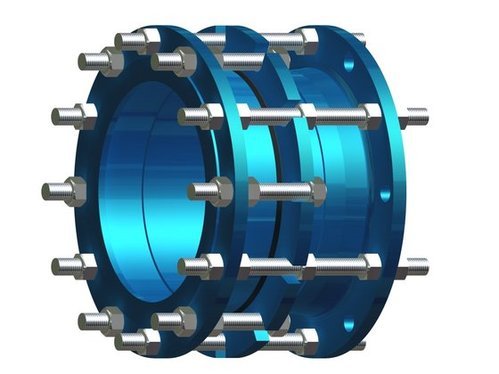

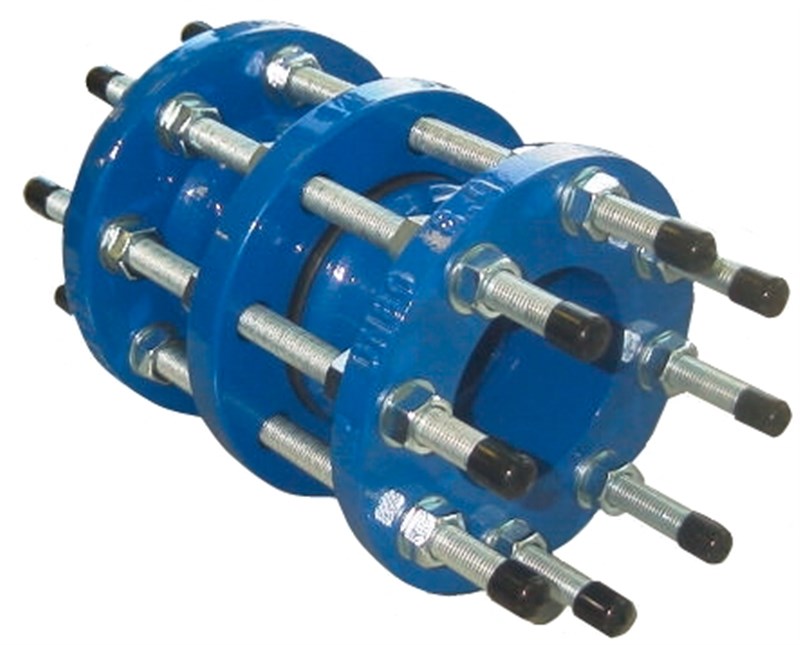

Dismantling Joint

Main Connection Dimensions

Nominal diameter	Extemal diameter	Shape dimension		Flange connection size
DN	DN	L	L1	D	D1	N-TH	B
65	76	200	40	185	145	4-M16	120
80	89			200	160	8-M16	22
100	114			220	180		24
125	140			250	210		26
150	168			285	240	8-M20	26
200	219			340	295	8-M20	28
250	273			395	350	12-M20	28
300	325	220	50	445	400	12-M20	28
350	377			505	460	16-M20	30
400	426			565	515	16-M24	32
450	480			615	565	20-M24	32
500	530			670	620	20-M24

Advantages of Dismantling Joints:

The dismanting joint is suitable for pipelines with flanges on both sides.
The dismanting joint is suitable for pipelines with flanges on both sides. When installing, the installation length of both ends of the product and flanges can be adjusted. The diagonal fund-raising can tighten the bolt of the pressure cap evenly, making it an integral whole with a certain displacement. It is convenient to install and repair, and it can be adjusted according to the size of the site.

Our products have been inspected by the verticality of bellows, bellows forming inspection, dimension inspection, paint thickness inspection and leakage test to ensure the quality of products.

When we have finished production, we will pack our products in custom wooden cases and then transport them to our customers.

We currently have ISO certificates, material certificates, testing reports and certificates of origin.

Our company’s slogan is: to provide high-quality pipe fittings for global customers
